Opal Large Energy Storage Systems

For Commercial and Industrial applications, the system size will require multiply inverters and batteries to be connected together.

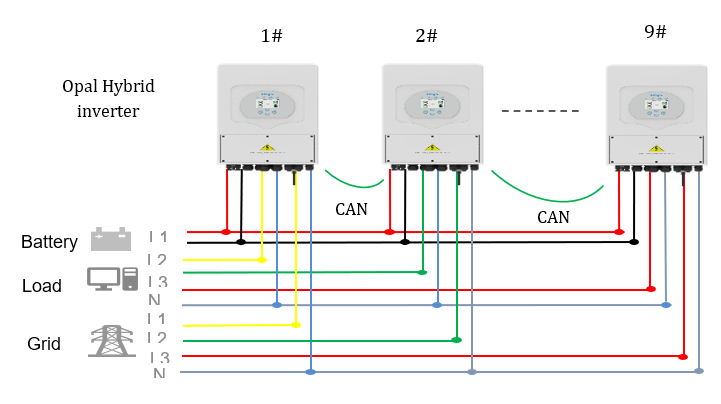

Opal Energy hybrid inverters three phase can be parallel up-to 9 units. i.e. 12kW x 9 units = 108kW. The system can accommodate approx.. 140kWp of solar array. If the system is larger, we can multiply the system except the critical loads need to be separated.

For example, the site could fit 280kWp of solar array and the critical load needed is 200kW to back-up, we can offer 2 separate systems each comprises 12kW x 9 units of Opal Hybrid inverters plus batteries (to determine depending of the energy requirement). The critical loads of 200kW will need to be separated into 2 x 100kW.
